A PMT (Photomultiplier Tube) assembly is a component used in scintillation detectors to detect and measure ionizing radiation. PMTs consist of a photocathode, a series of dynodes, and an anode. When a photon strikes the photocathode, it releases electrons through the photoelectric effect. These electrons are then accelerated and multiplied as they pass through the series of dynodes. Finally, the multiplied electrons reach the anode, generating an electrical pulse.
PRODUCT DETAILS

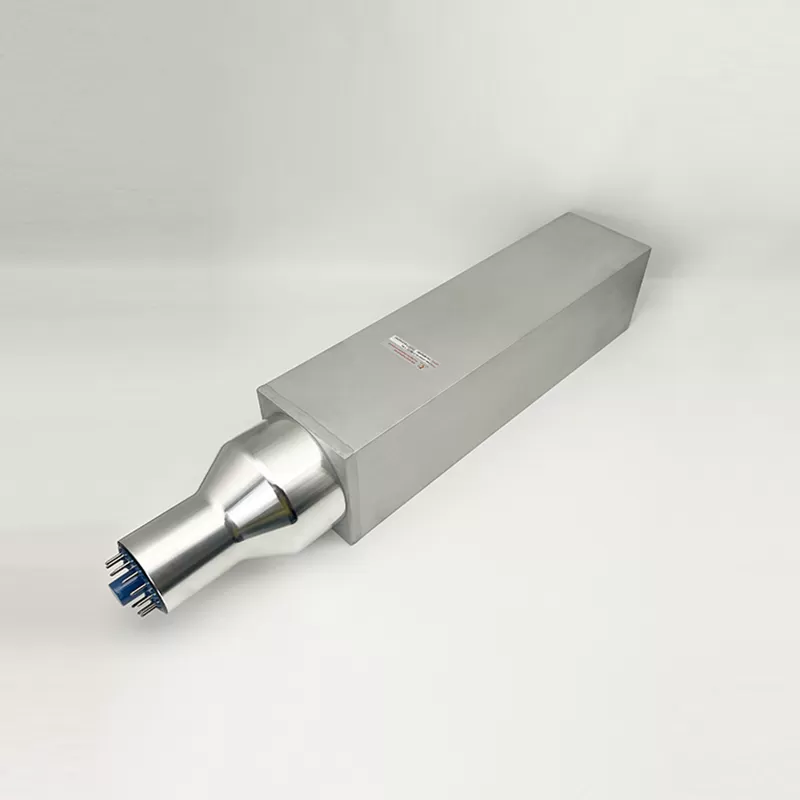

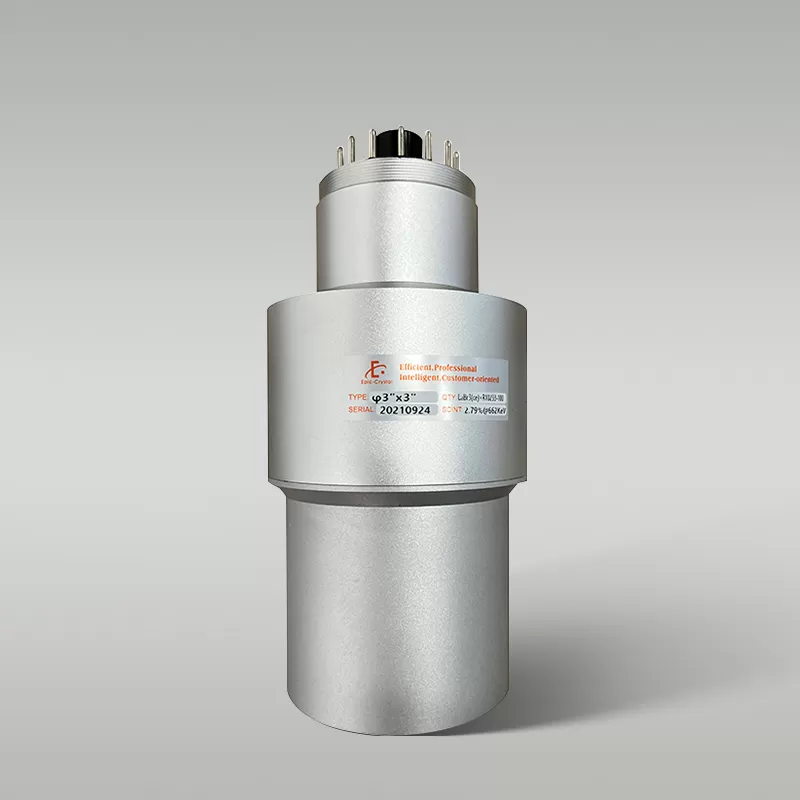

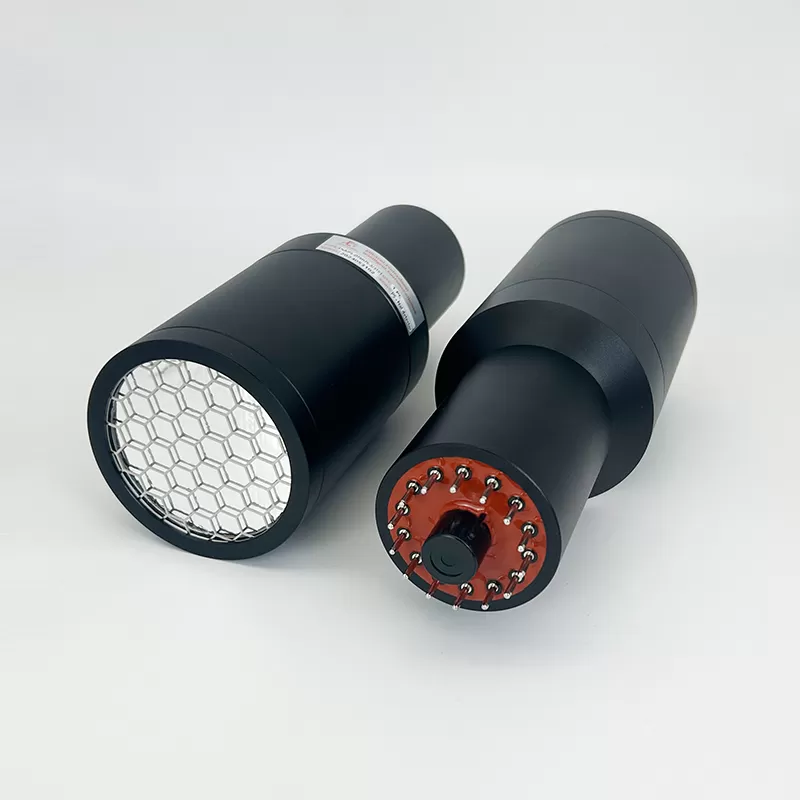

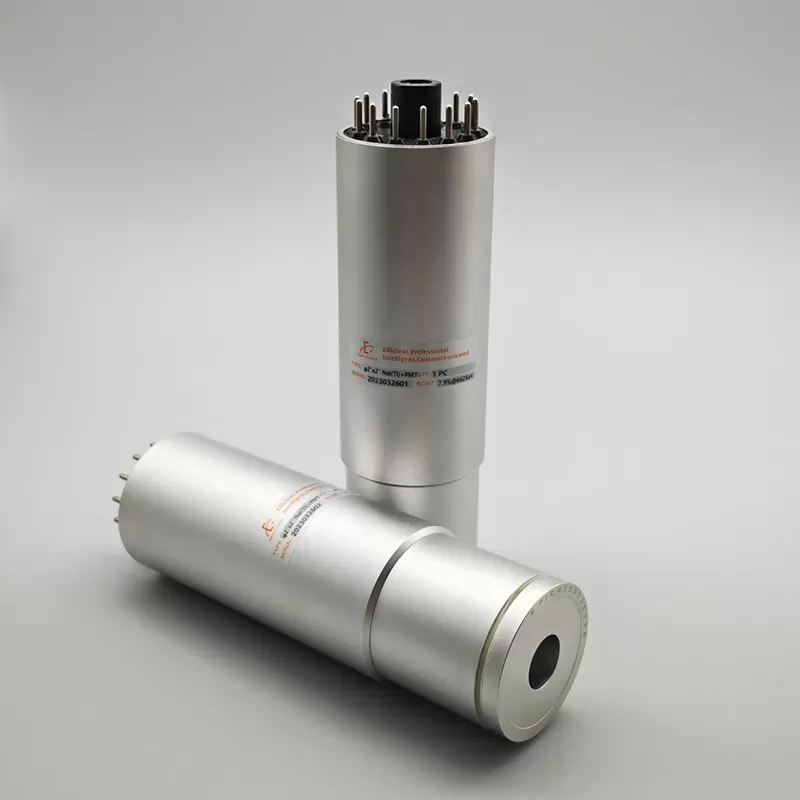

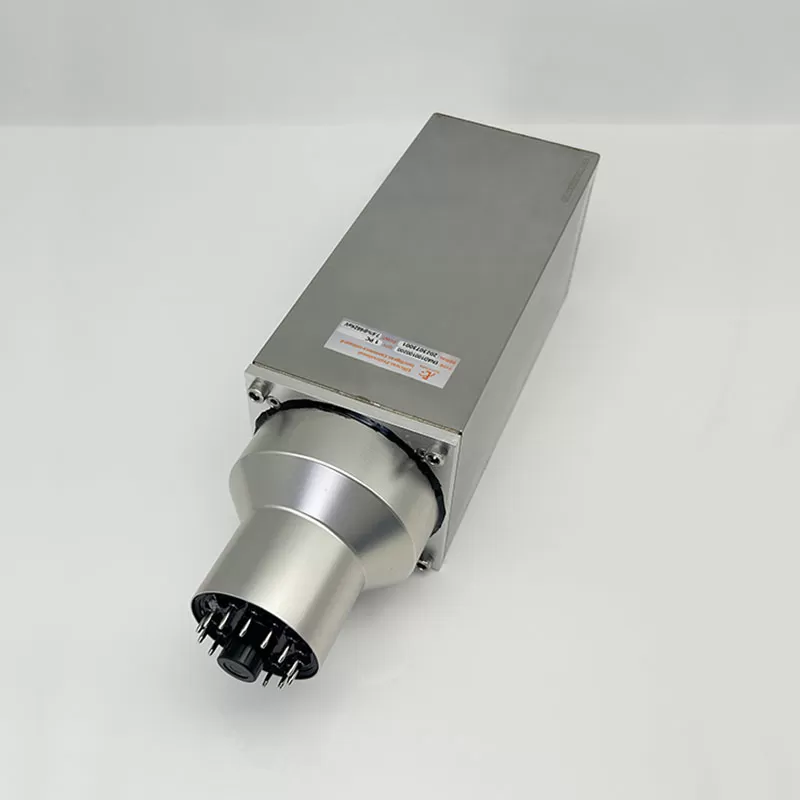

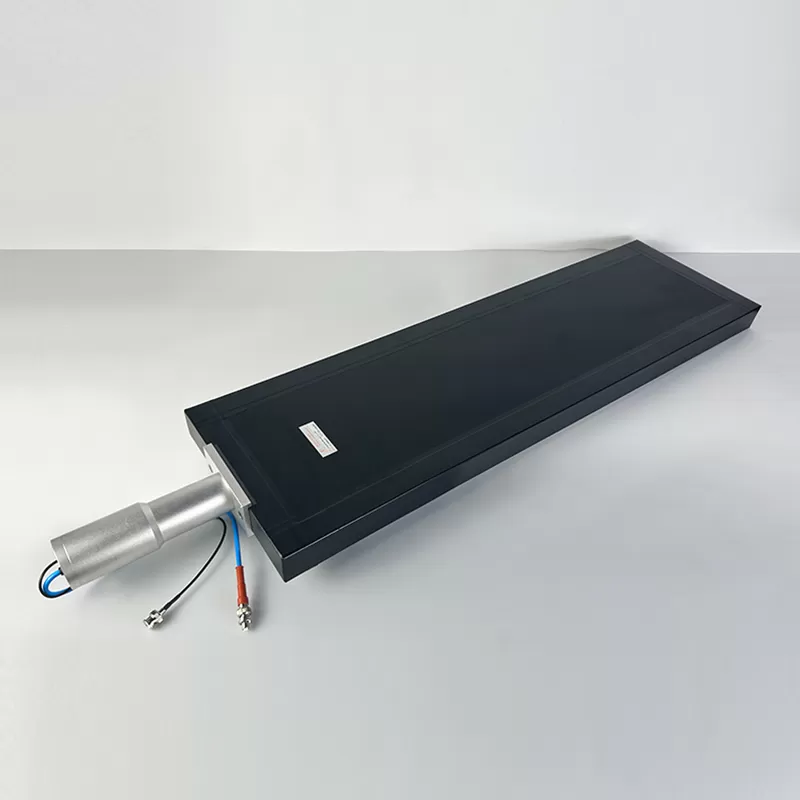

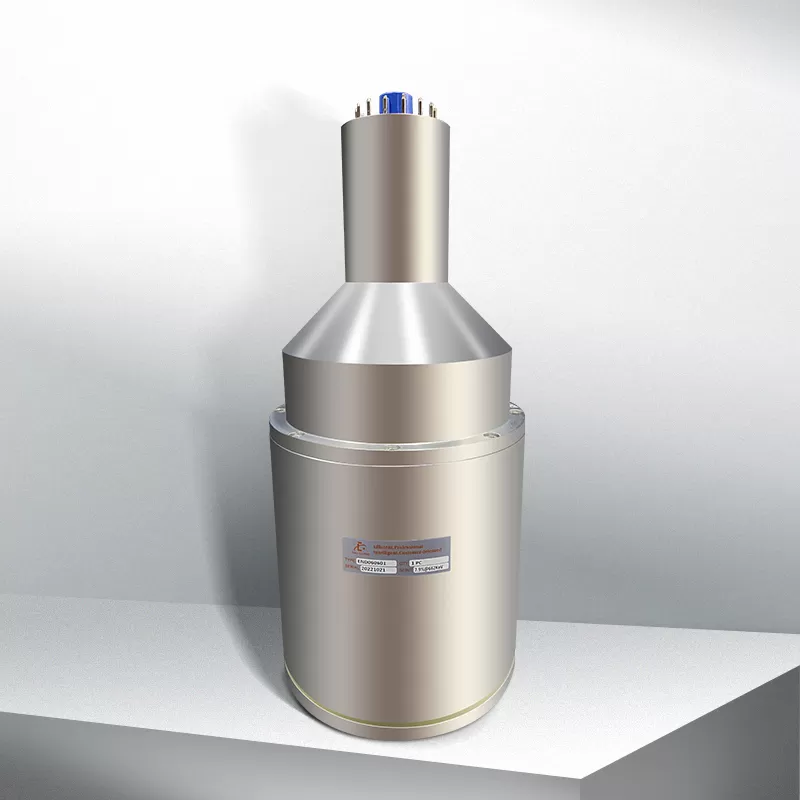

In Epic crystal, the Scintillation crystals can be assembled into standard PMT detectors included the most commonly used NaI(Tl), LaBr3(Ce) and CeBr3, We could also assemble detectors from other materials like BGO, CsI(Tl), CsI(Na) and Plastic scintillators. We offer a variety of assemble options in terms of scintillators size, type of PMT, coupling grease, magnetic shielding and dismountable configurations between scintillators and PMTs, and our manufacturing process ensures the detectors with high sensitivity, high stability and excellent resolution.
Below mentioned detectors are regular design from Epic Crystal, scintillators size, type and PMT can be customized.
| Scintillator | Model | Scintillator Size | Type of PMT | PHR(Cs137) | Datasheet |
| NaI(Tl) | ENAI-D50H50/2T01 | 2"x2" | CR105 | <=7.5% | |
| NaI(Tl) | ENAI-WD50H50/2T01 | 2"x2" | CR105 | <=7.5% | |
| NaI(Tl) | ENAI-D76H76/3T01 | 3"x3" | CR119 | <=7.5% | |
| NaI(Tl) | ENAI-D76H76/3T02 | 3"x3" | CR160 | <=7.5% | |
| NaI(Tl) | ENAI-WD76H76/3T01 | 3"x3" | CR119 | <=7.5% | |
| NaI(Tl) | ENAI-L2W4H16/3T01 | 2"x4"x16" | CR119 | <=8.5% | |
| NaI(Tl) | ENAI-L4W4H8/3T01 | 4"x4"x8" | CR160 | <=8.5% | |
| NaI(Tl) | ENAI-L4W4H8/3.5T01 | 4"x4"x8" | CR366 | <=8.5% | |
| NaI(Tl) | ENAI-D127H127/5T02 | 5"x2" | R877 | <=9.0% | |
| NaI(Tl) | ENAI-D127H127/5T01 | 5"x5" | ET9390KB | <=8.5% | |
| NaI(Tl) | ENAI-D150H150/5T01 | 6"x6" | ET9390KB | <=8.5% | |
| LaBr3(Ce) | ELBC-D25H25/1.5T01 | 1"x1" | CR284 | <=3.5% | |
| LaBr3(Ce) | ELBC-D38H38/2T01 | 1.5"x1.5" | CR173 | <=3.5% | |
| LaBr3(Ce) | ELBC-D50H50/2T01 | 2"x2" | CR173 | <=3.5% | |
| LaBr3(Ce) | ELBC-D50H50/3T01 | 2"x2" | CR160 | <=3.5% | |
| CeBr3 | ECB-D38H38/2T01 | 1.5"x1.5" | CR173 | <=4.5% | |
| CeBr3 | ECB-D50H50/2T01 | 2"x2" | CR173 | <=4.5% | |
| CeBr3 | ECB-D50H50/3T01 | 2"x2" | CR160 | <=4.5% | |
| GAGG(Ce) | EGAGG-D50H50/2T01 | 2"x2" | CR173 | <=8.5% |
