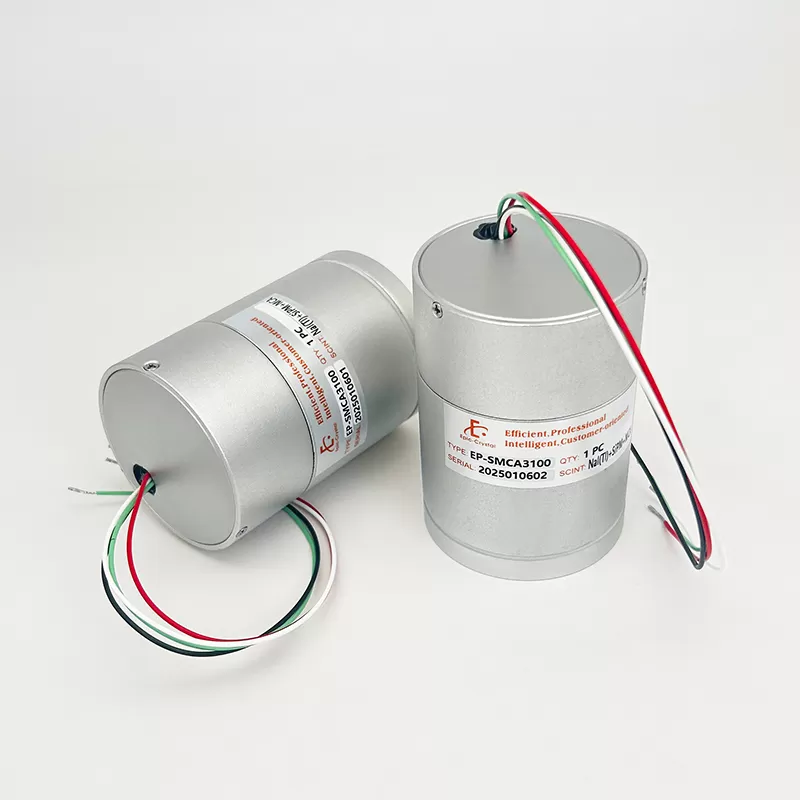

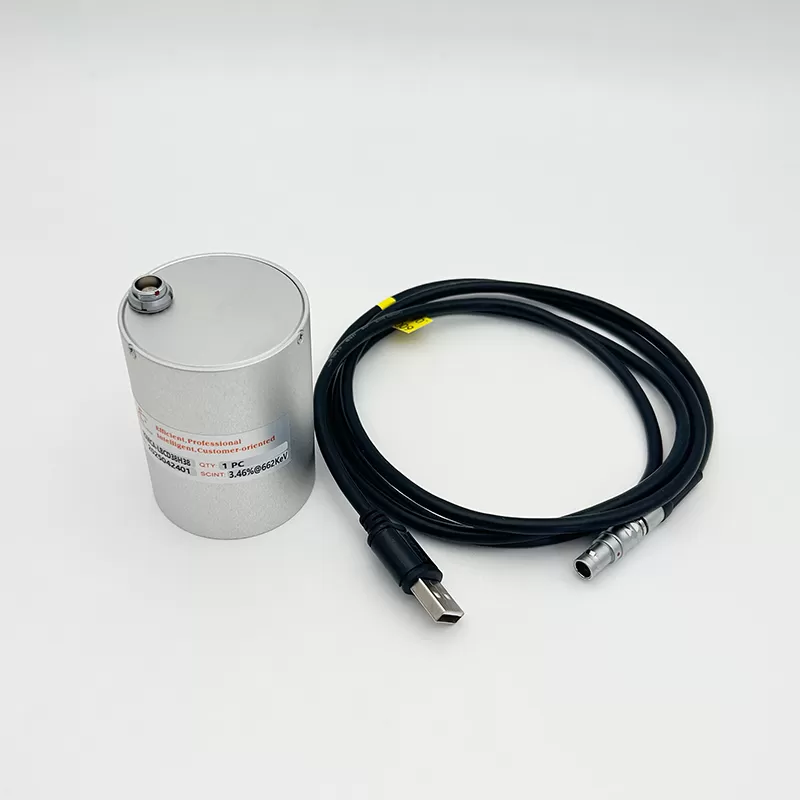

ESMCA-T01 spectrometer is a product that use SIPM coupled with scintillator, and combined with a ASIC core pulse processing chip. It has significant advantage in terms of size and power consumption. The scintillators we can apply include NaI(Tl), LaBr3(Ce), CeBr3, CsI(Tl) and GAGG(ce) etc, the dimension of them can be customized according to request.
PRODUCT DETAILS
ESMCA-T01 spectrometer is a product that use SIPM coupled with scintillator, and combined with a ASIC core pulse processing chip. It has significant advantage in terms of size and power consumption. The scintillators we can apply include NaI(Tl), LaBr3(Ce), CeBr3, CsI(Tl) and GAGG(ce) etc, the dimension of them can be customized according to request.
Features and technical parameters:
◇ Standard detectors based on SIPM with options of scintillator`s type and size
◇ The detector is integrated with MCA
◇ Excellent energy resolution, comparable to photomultiplier systems
◇ Built in low-power ASIC multi-channel: 1024/2048/4096 software adjustable
◇ Supporting gain and shape time adjustment
◇ Automatic spectrum stablization without external reference source
◇ Small size and low power consumption
◇ Nuclide identification and energy spectrum analysis function can be added
◇ Equipped with free/paid version of spectral analysis spftware
| Model | Scintillator | Scintillator size | Energy resolution(@662keV) |
| ESMCA-NAID25H25 | NaI(Tl) | 1.0"x1.0" | <=7.5% |
| ESMCA-NAID38H38 | NaI(Tl) | 1.5"x1.5" | <=7.5% |
| ESMCA-NAID50H50 | NaI(Tl) | 2.0"x2.0" | <=7.5% |
| ESMCA-LBCD25H25 | LaBr3(Ce) | 1.0"x1.0" | <=4.0% |
| ESMCA-LBCD38H38 | LaBr3(Ce) | 1.5"x1.5" | <=4.0% |
| ESMCA-LBCD50H50 | LaBr3(Ce) | 2.0"x2.0" | <=4.0% |
| ESMCA-CBD25H25 | CeBr3 | 1.0"x1.0" | <=5.0% |
| ESMCA-CBD38H38 | CeBr3 | 1.5"x1.5" | <=5.0% |
| ESMCA-CBD50H50 | CeBr3 | 2.0"x2.0" | <=5.0% |
