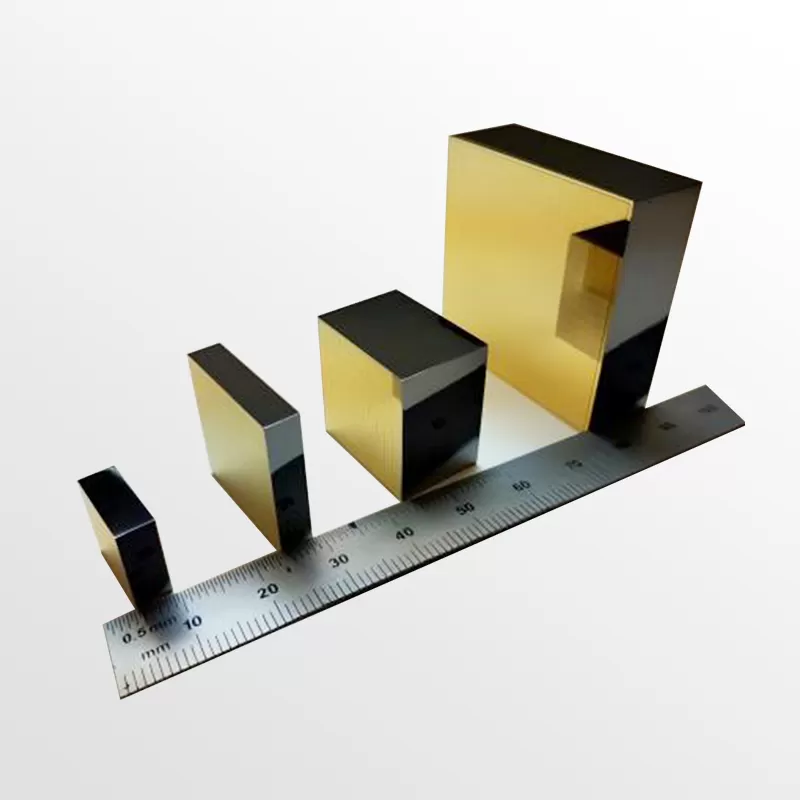

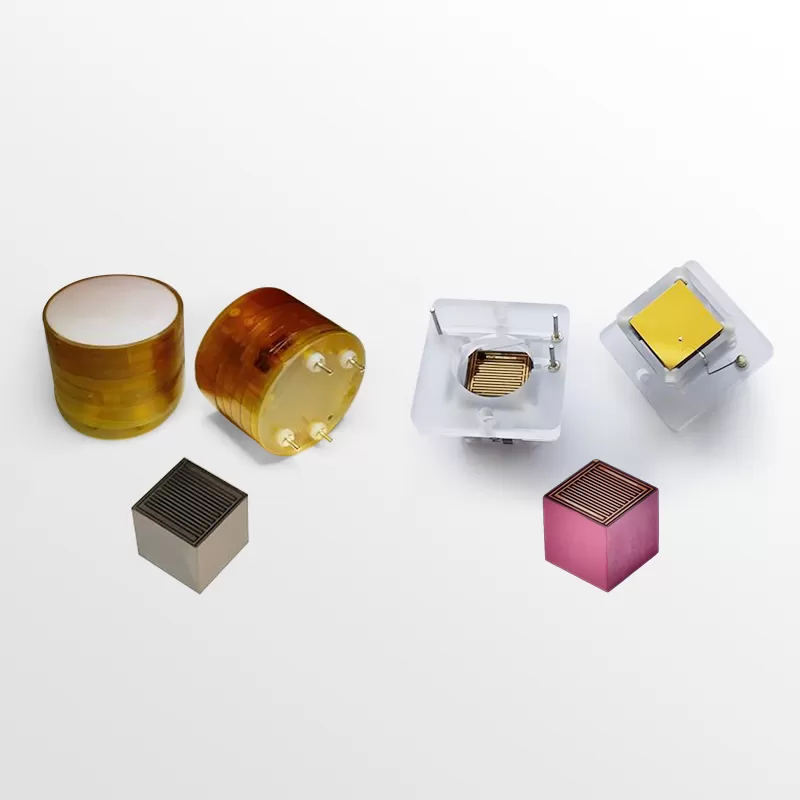

Cadmium Zinc Telluride(CZT) is functional at room temperature without the need for cooling, and operates via direct conversion, it has a high energy and spatial resolution, sensitivity and high efficiency, producing accurate spectroscopic data and high quality images for a variety of application. Epic Crystal provide series of detector modules and spectrometer based on CZT semiconductor.
PRODUCT DETAILS

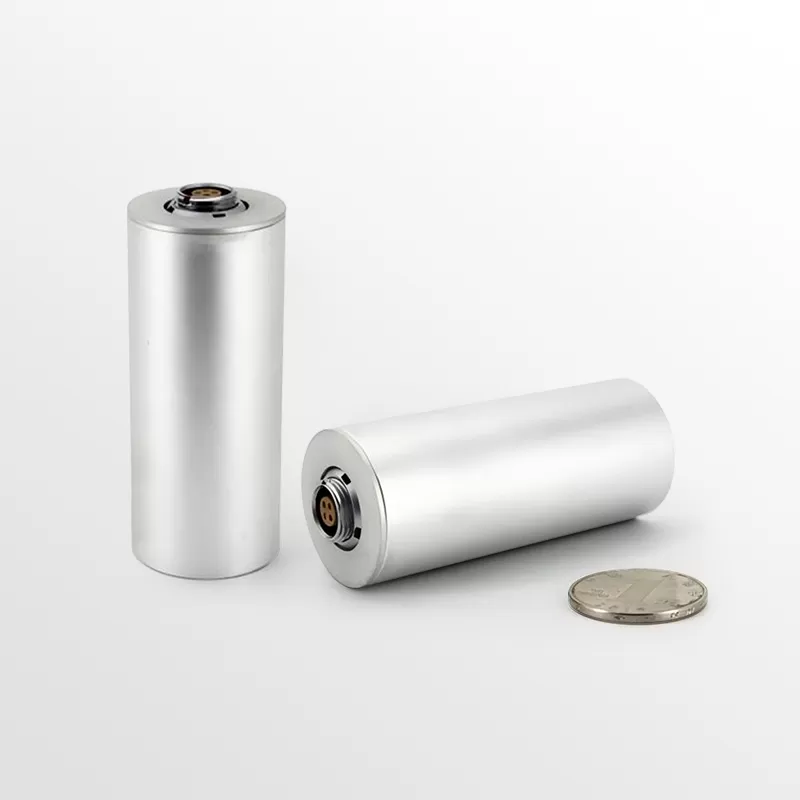

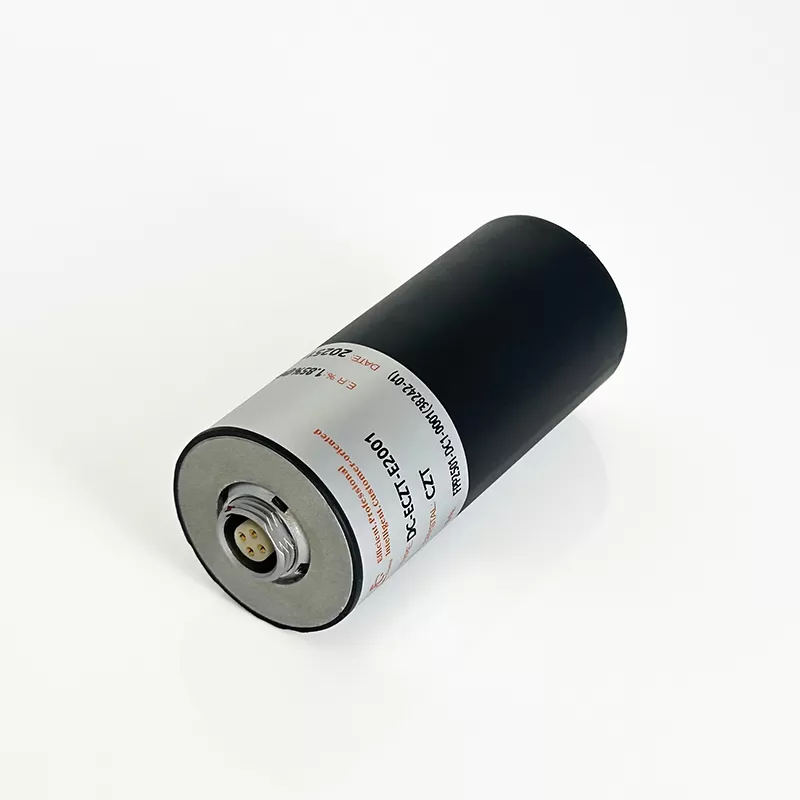

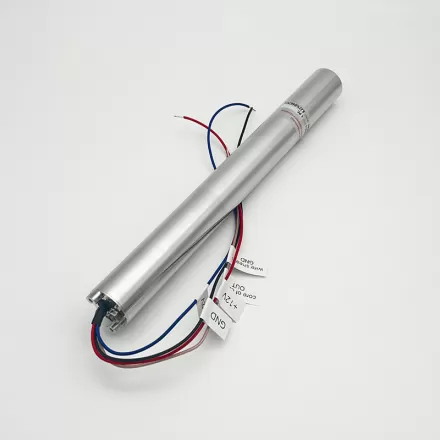

ECZT-E2001 CPG detector
ECZT-E2001 CPG detector uses a room temperature semiconductor CZT detector with a coplanar grid structure and sigle power supply low noise dual different amplification circuit. It features an internal gate bias circuit and preamplifier signal output, making it an ideal choice for high resolution portable spectrometry applications in areas such as national security, health physics, gamma energy spectrum measurement teaching and research etc.
| Datasheet | |||||
| Detector | CZT | Peak Drift(8h) | <1% | Enclosure | Aluminum alloy |
| Crystal Size | 10x10x10 mm3 | HV Supply | -1200 V | Protection Rating | IP65 |
| Dose Rate Range | 0.1 uSv/h-10 mSv/h | LV Supply | +12 V | Operating Temp | -10-40 ℃ |
| Energy Range | 30 keV-3 MeV | Power Consumption | <30 mA | Relative Humidity | 20-70% |
| Energy resolution | <=2% @662 keV | Signal Output | Positive Polarity Exponential Decay Signal | Dimension | diam.30 x 70 mm Height |
| Accuracy | <+/- 15%@Cs137 | Interface | 4-pin LEMO connector | Weight | 60 g |

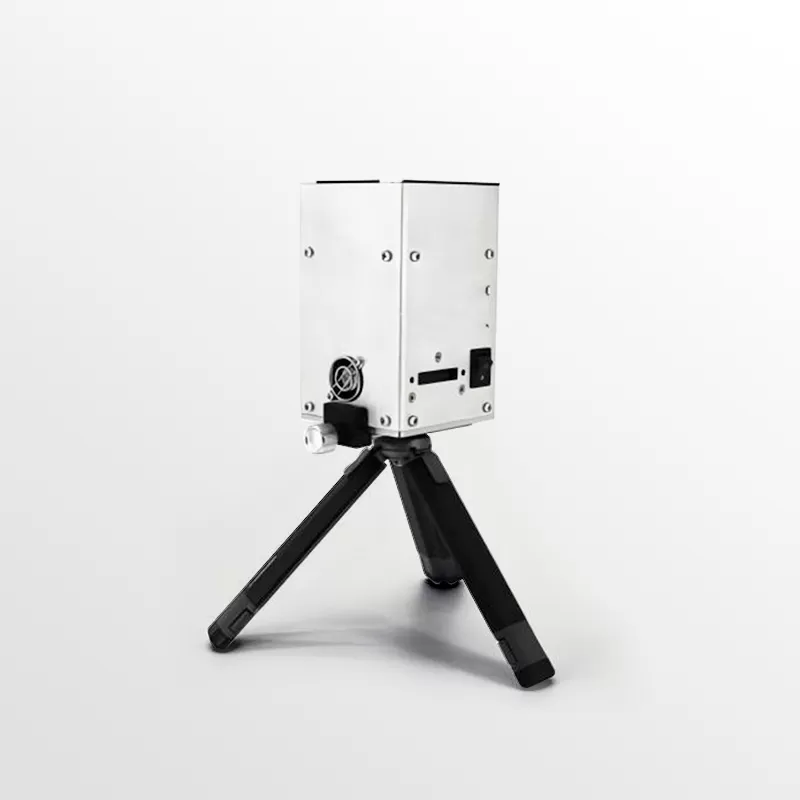

ECZT-D2003 Spectrometer
ECZT-D2003 high resolution CZT spectrometer is a high performance gamma spectromer device. It integrates a large sized CZT detector, ASIC chip, ADC and FPGA readout circuit. The device features advanced algorithms that can achieve three-dimensional depth correction, charge coupling correction and K-escape peak calibration, outputing energy and timing information. This makes it convenient for users to perform spectrum analysis, nuclide identification and source localization applications.
| Datasheet | |||
| Detector Type | CZT | External Interface | 2-pin plug power interface 2-pin avuation plug to RJ45 network port |
| Crystal Thickness | 10 mm and 15 mm(optional) | Power Supply | DC 16V |
| Crystal Volume | 19.4 cm3 and 29 cm3(optional) | Power Consuption | 7.5 W |
| Energy Resolution | <=1.5% @662keV | Housing Material | Aluminum |
| Spectral Energy Range | 30 keV-30 MeV | Dimensions | 90x90x135 mm |
| Output information | Spectral and Timing | Weight | 1.5 kg(excluding cables) |
ECZT-D2005 compton imaging module
ECZT-D2005 high performance CZT compton imaging module is independently designed and manufactured by our company. It integrates a large sized pixelated CZT detector, ASIC chip, ADC and FPGA readout circuit. The device features advanced algorithms and can achieve ray interaction DOI(Depth of Interaction), charge coupling correction and K-escape peak calibration. It outputs the position information(X,Y,Z DOI), energy information and timing information for each detected gamma ray, making it convenient for users to perform spectrum analysis, gamma ray imaging and source localization applications.
| Datasheet |
| ||||
| Detector Type | CZT | Energy Resolution | <=1.5% @662keV | Communication Interface | RJ45 network port |
| Crystal thickness | 10 mm and 15 mm optional | Energy Range | 30 keV-3 MeV | Power Supply | DC 16V |
| Crystal Volume | 19.4 cm3 and 29 cm3 optional | Field of View | 4π(360°) | Power Consumption | 7.5 W |
| Pixel arrays | 22x22 | Imaging Range | 250 keV-3 MeV | Dimensions | 83.5x83.5x127 mm |
| Pixel size | 2 mm | Output Information | Energy and timing, 3D position | Weight | 1.1 kg(excluding powercable) |
