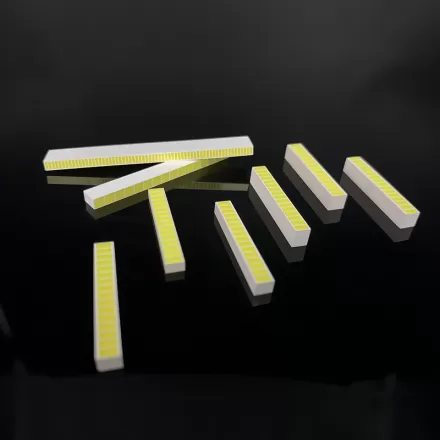

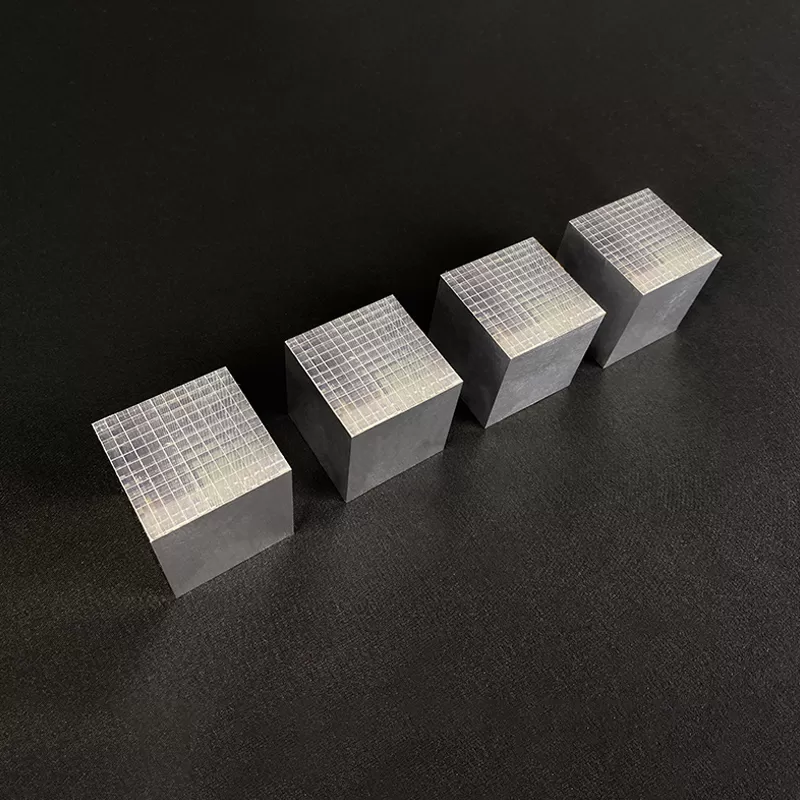

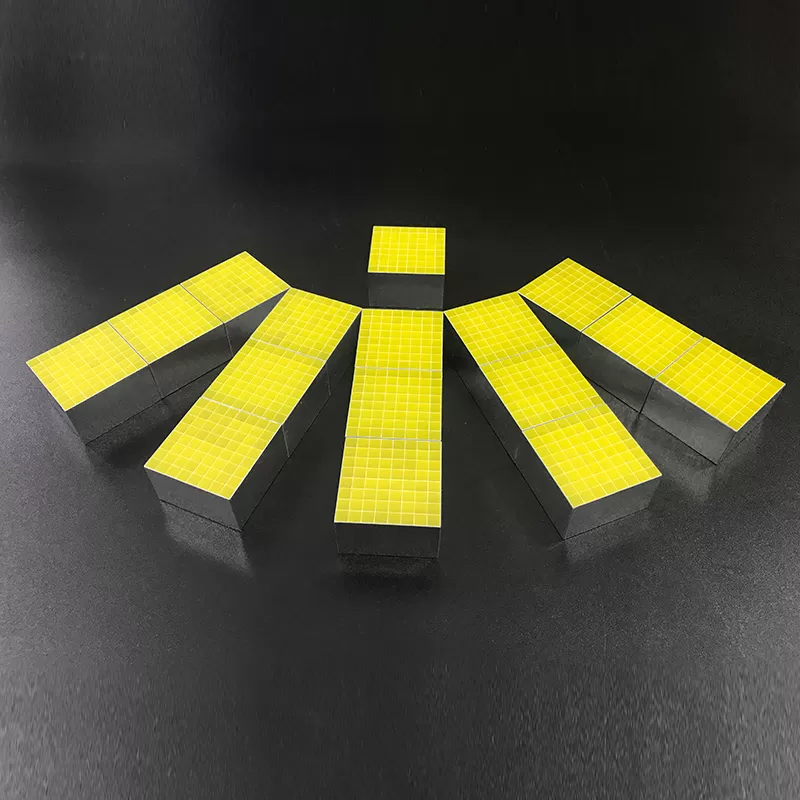

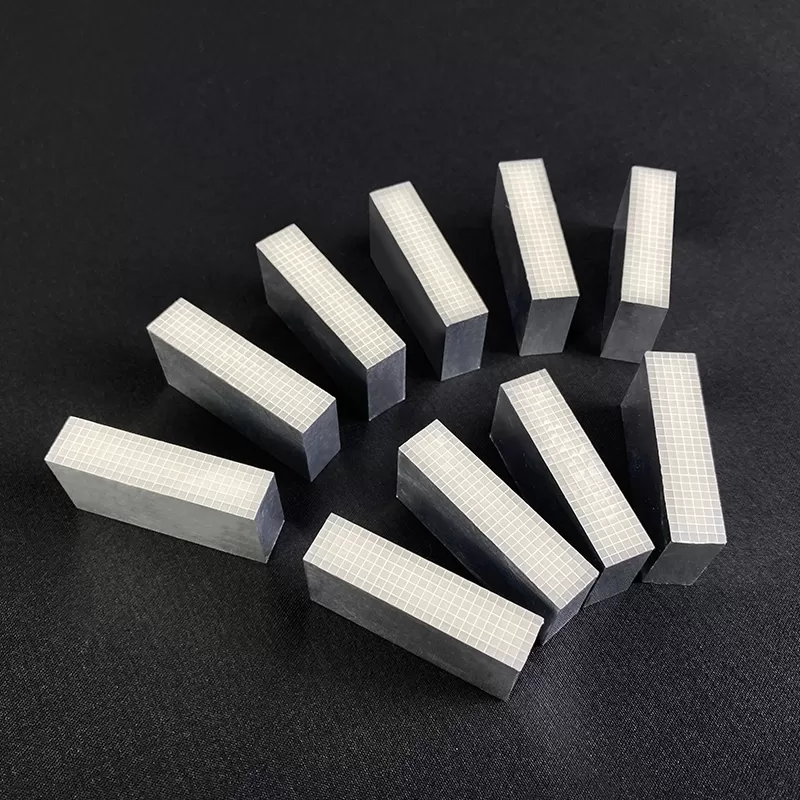

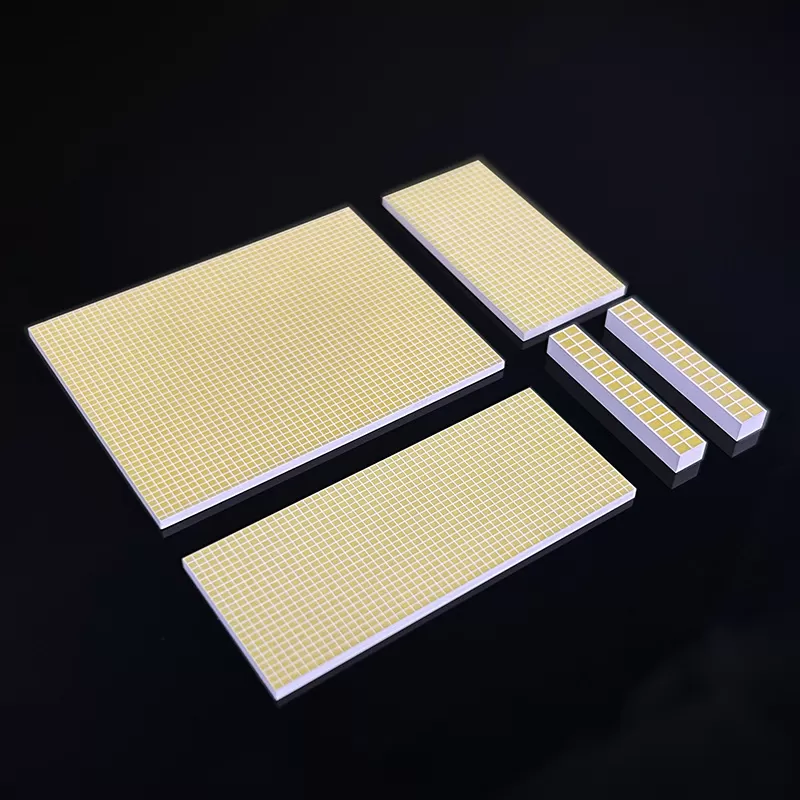

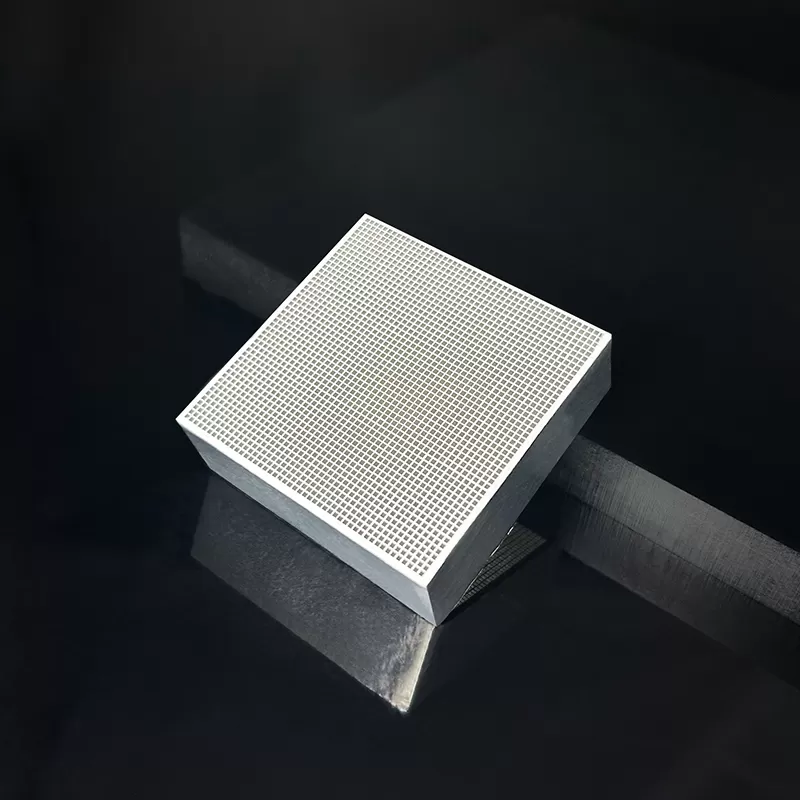

Two Dimensional Arrays

Two Dimensional Arrays, which are arranged in an X-Y matrix, its assemblies are typically coupled with pixelated photodiodes, position-sensitive photomultiplier tubes(PSPMT) and silicone photomultipliers(SiPM). The most common application is in medical imaging scanners (PET, SPECT, CT), portal imaging, X-ray flash radiography and non-destructive testing and inspection.

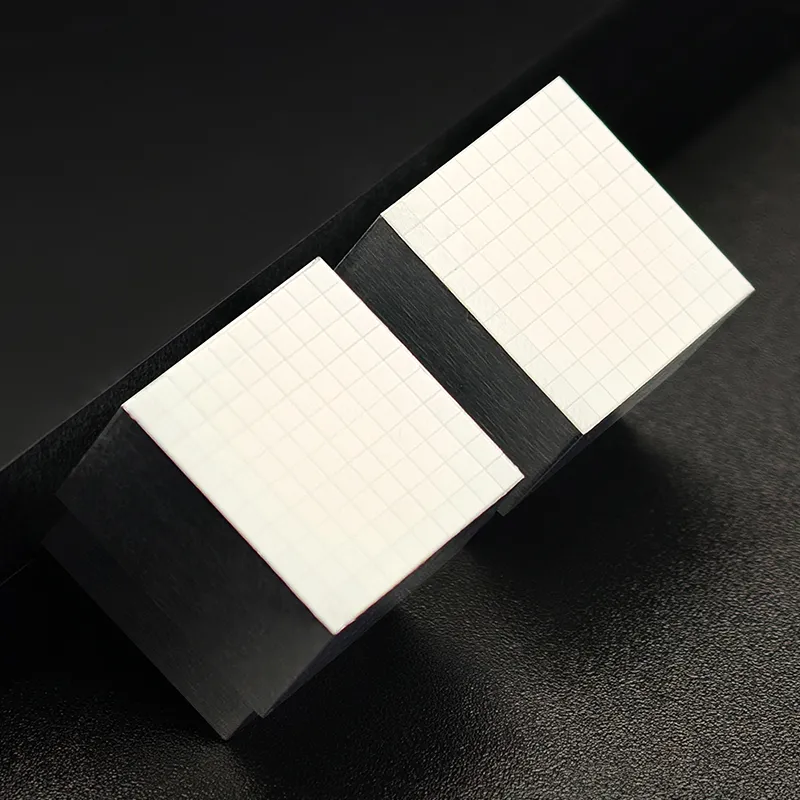

The scintillation crystals that can be produced into 2 dimensional arrays include most commonly used CsI(Tl), CdWO₄, GOS, LYSO(Ce), GAGG(Ce) and BGO, we could also produce 2-d arrays from other scintillation materials like YSO(Ce), YAG(Ce), YAP(Ce) and Plastic Scintillator etc. We offer a variety of design options in terms of pixel size, pixel pitch, the number of pixels, pixel separator materials and crystal surface finishes, in order to optimize array performance during actual application. Our manufacturing process ensures the arrays with high light output, high sensitivity, high resolution as well as excellent pixel-to-pixel, batch-to-batch uniformity with minimal crosstalk.
